14 head scale vertical packaging machine-Granule Packing Machine

14 head scale vertical packaging machine

Quick Inquiry

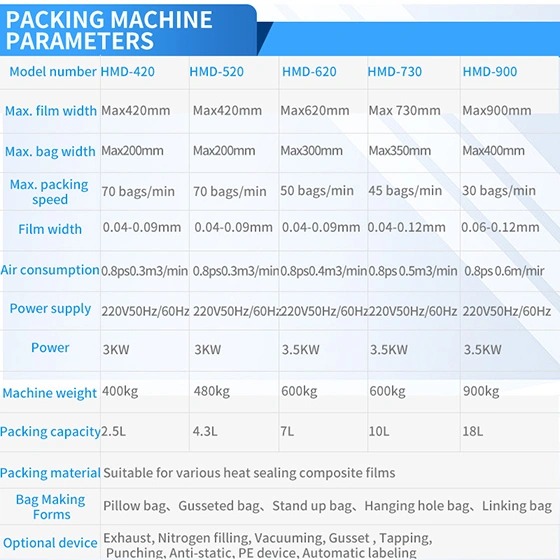

Parameter	Specification
Model HMD-420	HMD-420/HMD-520/HMD-620/HMD-730/HMD-900
Max Film Width	420mm/420mm/620mm/730mm/900mm
Max Bag Width	200mm/200mm/300mm/350mm/400mm
Max Packing Speed	70 / 70 / 50 / 45 / 30 bags/min
Film Width	0.04–0.09mm / 0.04–0.09mm / 0.04–0.09mm / 0.04–0.12mm / 0.06–0.12mm
Air Consumption	0.8 m³/min (HMD-420) / 0.8 m³/min / 0.8 m³/min / 0.8 m³/min / 0.8 m³/min
Power Supply	220V 50Hz / 60Hz (All models)
Power	3KW / 3KW / 3.5KW / 3.5KW / 3.5KW
Machine Weight	400kg/480kg/600kg/600kg/900kg
Packing Capacity	2.5L / 4.3L / 7L / 10L / 18L
Packing Material	Suitable for various heat sealing composite films
Bag Making Forms	Pillow bag, Gusseted bag, Stand-up bag, Hanging hole bag, Linking bag
Optional Devices	Exhaust, Nitrogen filling, Vacuuming, Gusset, Tapping, Punching, Anti-static, PE device, Automatic labeling
