Bowl lift type paste/liquid bag packing machine-Liquid/Paste

Bowl lift type paste/liquid bag packing machine

Quick Inquiry

Details
Parameter

Applicable Bag Type:

Applicable Material:

I. Scope of application of packaging machine

Suitable for quantitative weighing and filling of all kinds of sauces and liquids such as chilli sauce, garlic sauce, beef sauce, chilli oil, oil and vinegar, etc. It can be used for back-sealed bags, serrated bags, perforated bags and other packaging, with high applicability of consumables.

II. Functional features

1. Fully automatic packaging of liquids and pastes.

2. Packaging of liquids with different viscosities is possible.

3. No material without packaging, no waste of packaging costs.

4. Customised materials according to the material.

5. Optional measuring method according to different viscosity products.

6. High precision and beautiful packaging.

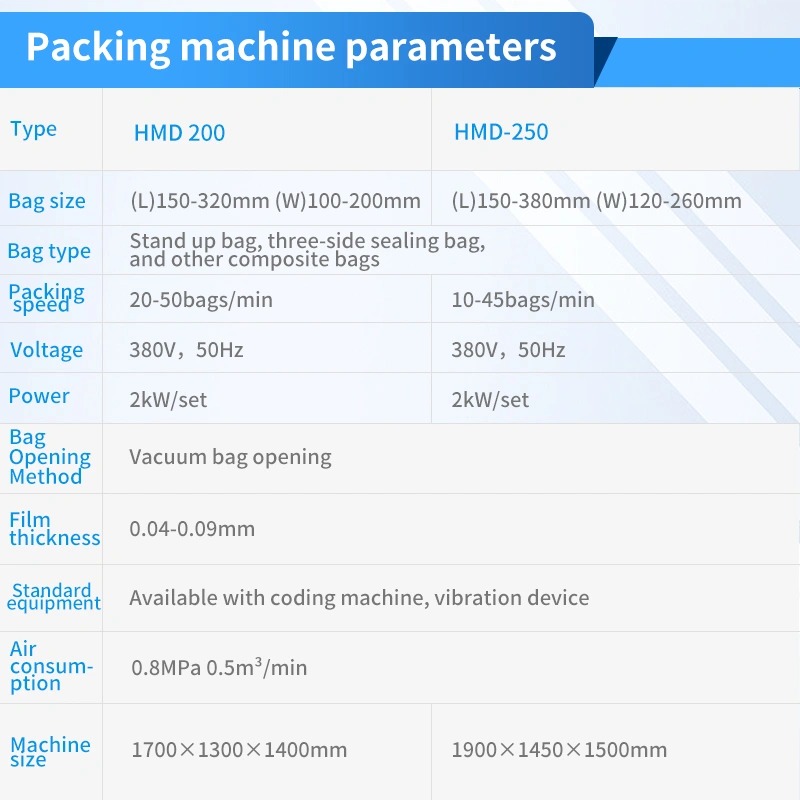

Packing Machine Parameters

Parameter	HMD-200	HMD-250
Type	HMD Series Packing Machine
Bag Size (L × W)	150–320 mm × 100–200 mm	150–380 mm × 120–260 mm
Bag Type	Stand-up bag, three-side sealing bag, and other composite bags
Packing Speed	20–50 bags/min	10–45 bags/min
Voltage	380V, 50Hz
Power	2 kW/set
Bag Opening Method	Vacuum bag opening
Film Thickness	0.04–0.09 mm
Standard Equipment	Coding machine, vibration device (optional)
Air Consumption	0.8 MPa, 0.5 m³/min
Machine Size	1700 × 1300 × 1400 mm	1900 × 1450 × 1500 mm
